Engineering of the bridge over the river Kishchay on the highway Sheki-Kish

Location

Azerbaijan

The Kish village, in which the church of St. Elisha is located, is located a few kilometers from the city of Sheki and is strongly associated with this ancient Azerbaijani city with its history and culture.

The Client was "Azerbaijan Highway State Agency". The length of the bridge is 89.2 meters, width - 11 meters.

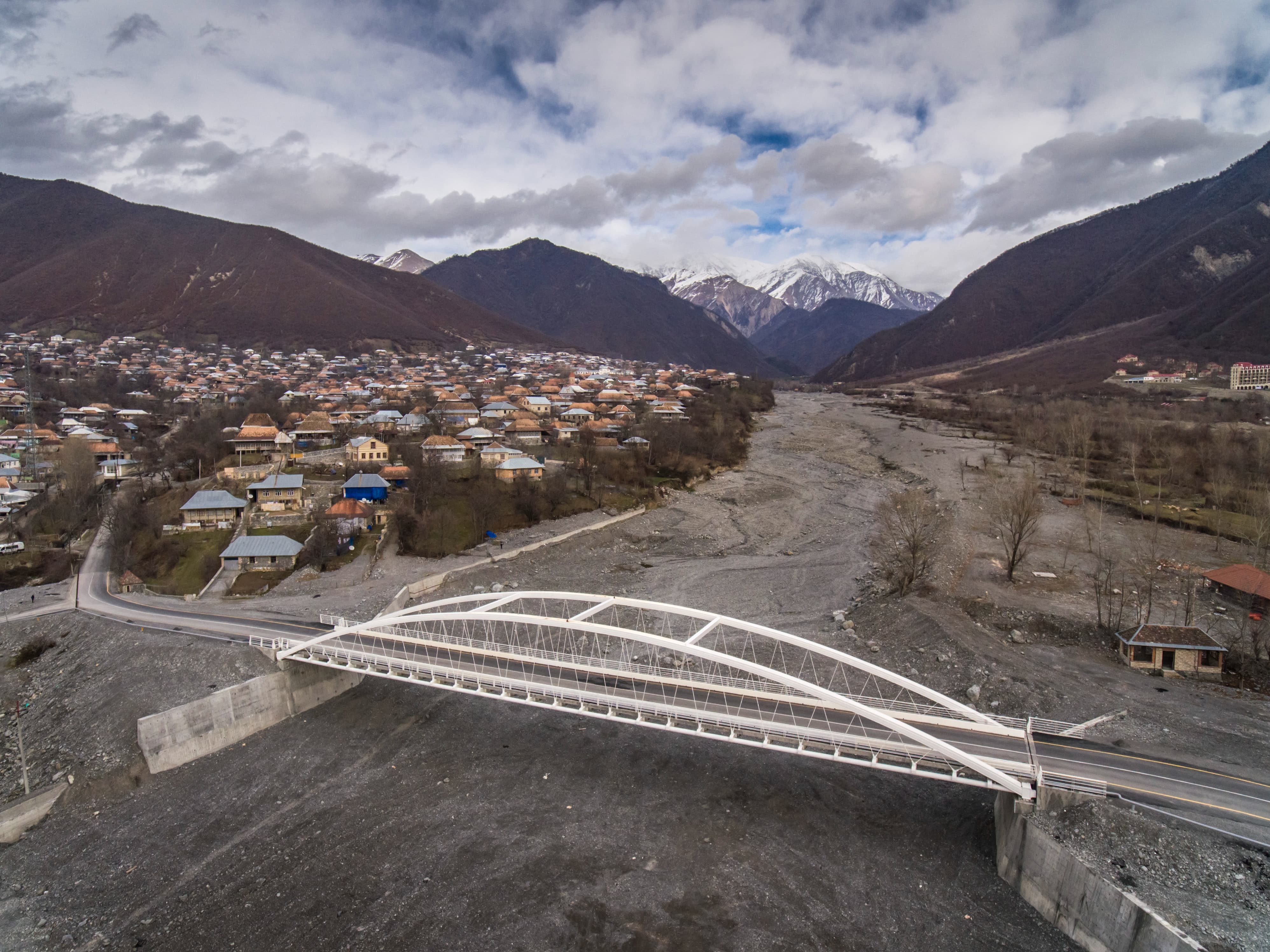

The width of the roadway of the new bridge is eight meters. In order to ensure comfortable and safe movement of pedestrians, pavements 1.5 meters wide will be built on both sides of the road. The bridge is single-span, the height of the bridge above the riverbed is seven meters, which will prevent the bridge from causing damage to mudflows in the future.

Bridge specifications:

  • Scheme 1х80,2m.;
  • Total length L=89,2 m;
  • Overall dimensions G-7,0m.

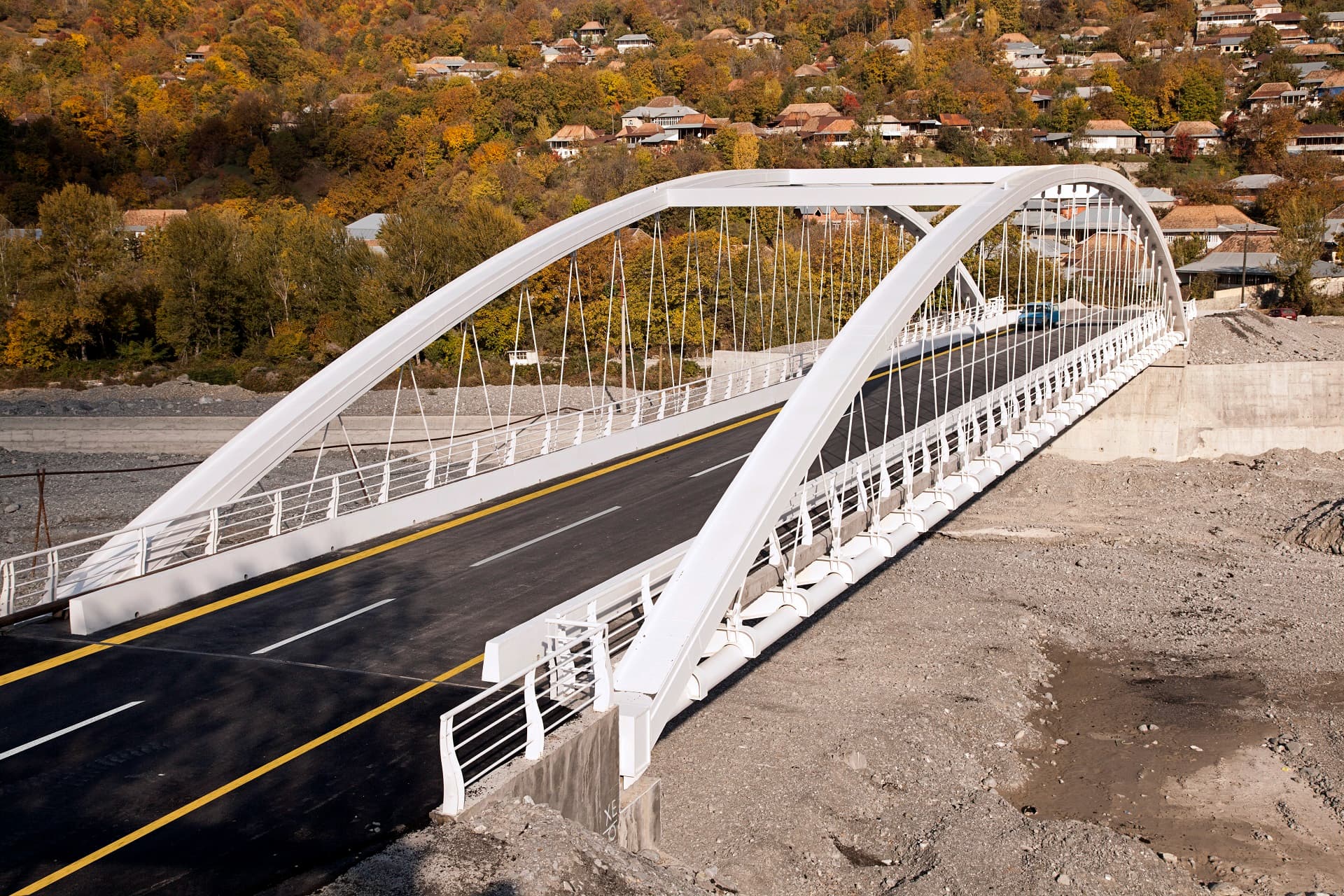

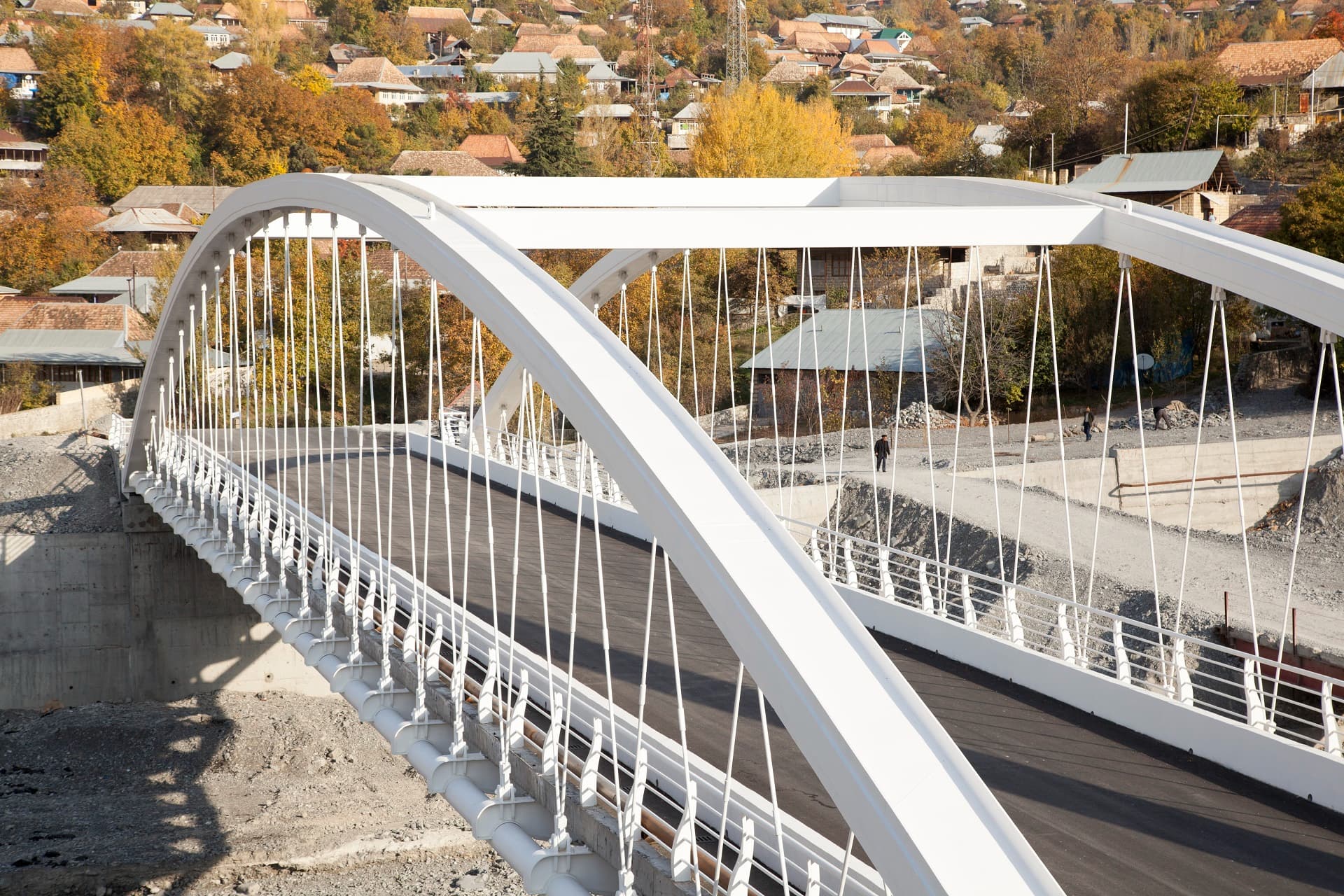

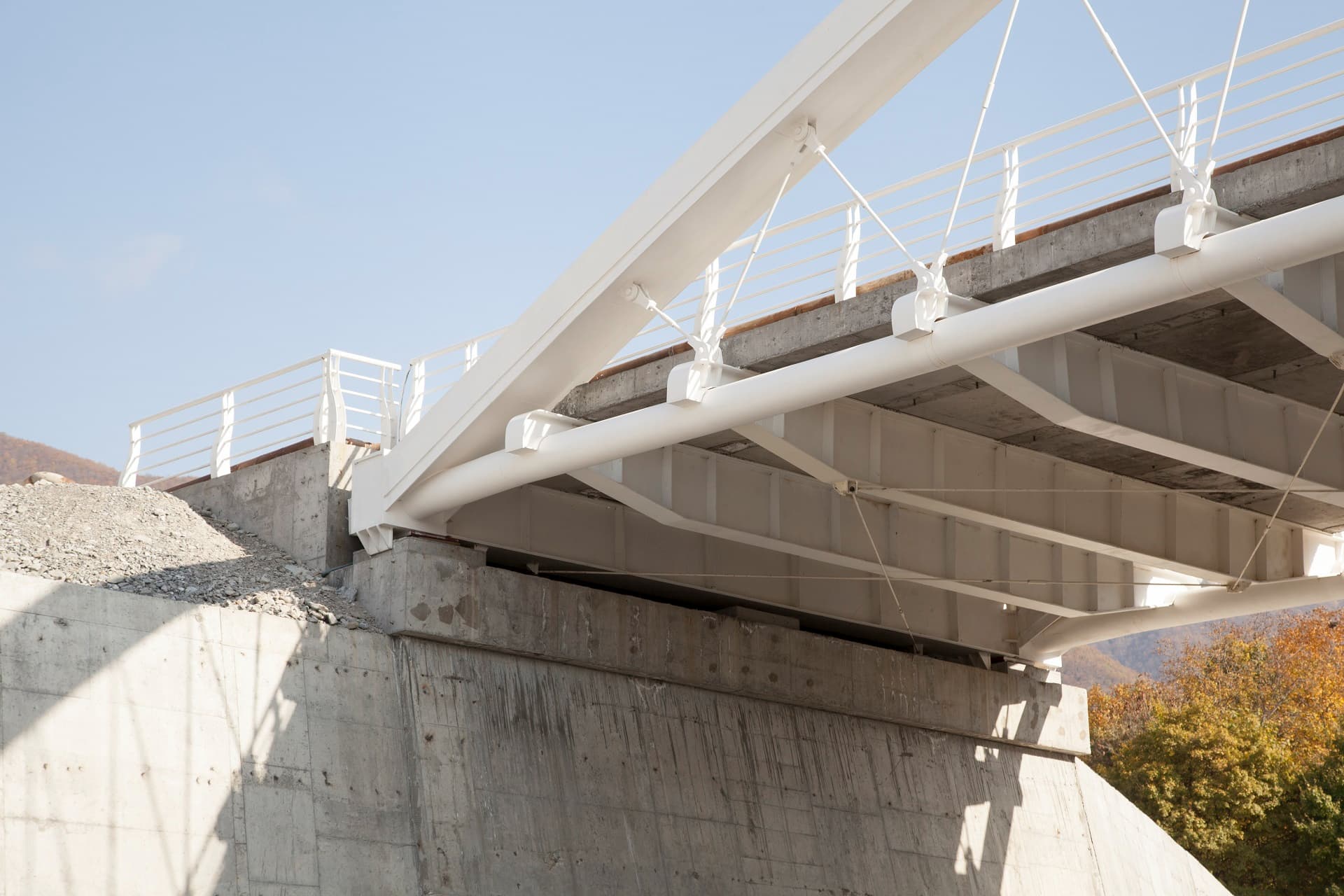

The bridge span is taken in the form of a monolithic reinforced concrete slab, suspended on a metal arch. The extreme supports of the bridge are designed by massive individual construction.
